Description

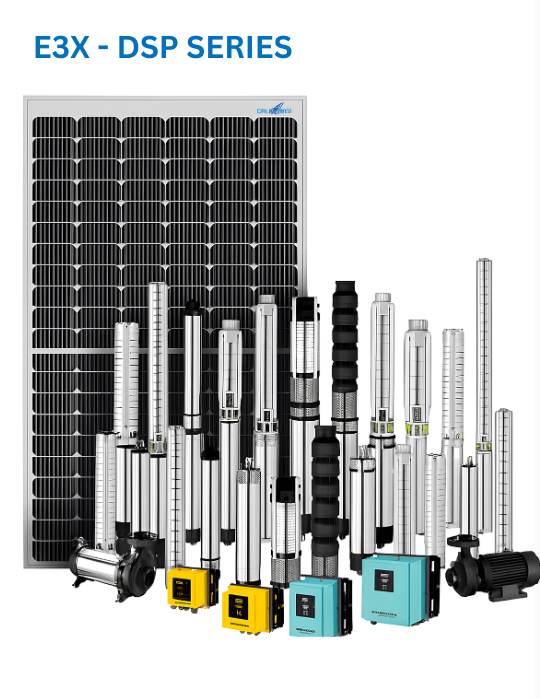

The 3" DC PMSM Solar Pump Set developed by Hawksun is solar-powered water pump system that uses a 3” Permanent Magnet Synchronous Motor (PMSM) to drive the 3" pump. This pump set is designed for use in remote areas where access to grid electricity is limited or non-existent, and where the availability of solar energy is abundant.
Model Range
- H.P Range : 0.5 to 1.0
- Head Range (mtr.) : 30 to 60
- Flow Range(mYhr) : 1.0 to 1.5
| Sr. No. | H.P/Kw | Model | Head (mtr.) |
Flow Rate (m3/hr) |
Outlet (inch) |
MONO PANEL | POLY PANEL | Solar Power (Wp) |
Pump ₹ (M.R.P) |
Pump Set ₹ (M.R.P) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage (V) | Current (A) | Voltage (V) | Current (A) | |||||||||
| 1 | 0.5/0.37 | E3X-DSP-530 | 30 | 1.5 | 1.0" | 36 | 10 | 48 | 9 | 600 | 3,125 | 12,320 |
| 2 | 1.0/0.75 | E3X-DSP-1050 | 50 | 1.5 | 1.0" | 60 | 10 | 72 | 9 | 1000 | 3,360 | 12,880 |
| 3 | 1.0/0.75 | E3X-DSP-1060 | 60 | 1 | 1.0" | 60 | 10 | 72 | 9 | 1000 | 3,360 | 12,880 |
