Integrated Solar Technologies Pvt. Ltd. is pleased to introduce Top graded PV Solar Modules manufactured by M/s Saatvik Solar with assured support towards Supply of Quality products and after sales service.

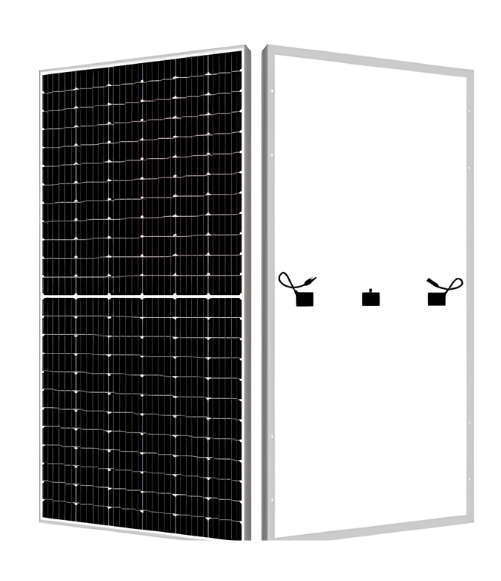

MONO PERC
144 Cells
525Wp /530Wp /535Wp /540Wp /545Wp /550Wp /555Wp
- High Module Conversion Efficiency
- Advanced Technology
- Excellent performance in low light
- Excellent PID Resistance
- Withstanding a Harsh Environment
Module Specification Data
| Cell Type | N-TOPCon, 144 Cells |
| Dimensions | 2278x134x30 mm |
| Weight | 32 Kgs |
| Front Cover | 2.00 mm |
| Rear Cover | 2.00 mm |
| Frame Material | Silver Anodized Aluminum Profile |
| J-Box | IP68, 3 diodes |
| Cable | 350 mm, 4 mm2 |
| Connectors | Mc4 Compatible Connector |
| Standard Packaging | 36 Pieces/Pallet |
| Module Pieces per Container | 720 pieces (40°HQ) |

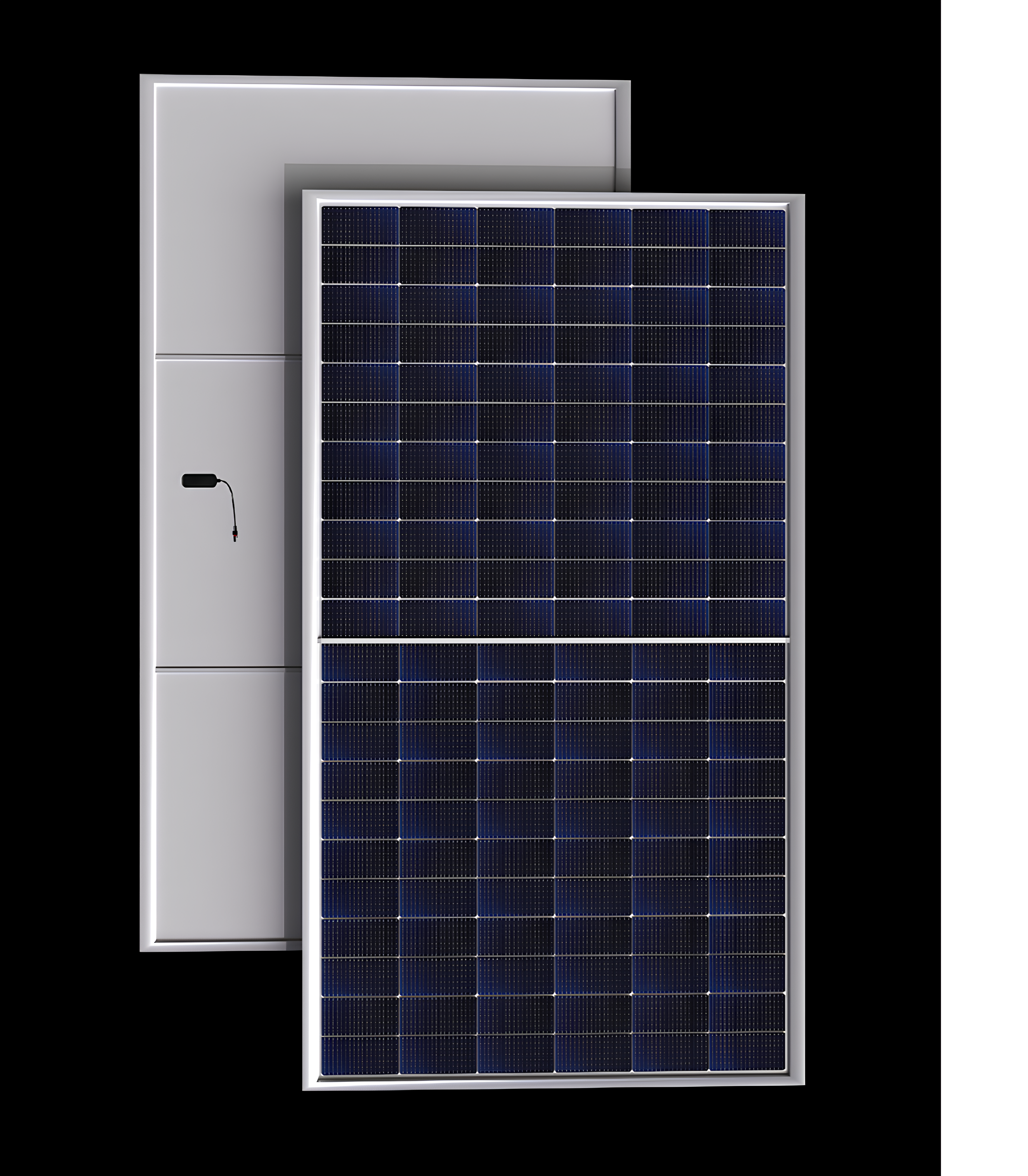

BIFACIAL N-TOPCON
144 Cells (Dual Glass)
6OWp /565Wp /570Wp /575Wp /580Wp /585Wp /590Wp
- N-Type with Very Low LID
- Higher Module Efficiency
- 10-30% more power generation
- Advanced technology
- Extended Wind and snow loads
Module Specification Data
| Cell Type | Half Cut-PERC Monocrystalline, 144Cells |
| Dimensions | 2278XN134X35 mm |
| Weight | 28 Kgs |
| Front Cover | 3.2 mm Tempered Glass |
| Backsheet | Composite Film |
| Frame Material | Silver Anodized Aluminium Profile |
| J-Box | IP68, 3 diodes |
| Cable | 350 mm, 4 mm2 |
| Connectors | Mc4 Compatible Connector |
| Standard Packaging | 36 Pieces/Pallet |
| Module Pieces per Container | 620 pieces (40°HQ) |
Certifications & Standards
IEC 61215, IEC 61730, IEC 61701, UL 61215, UL 61730, IS 14286, IEC 62716, IEC 62804, IEC 62782, IEC 60068-2-68
Certifications
